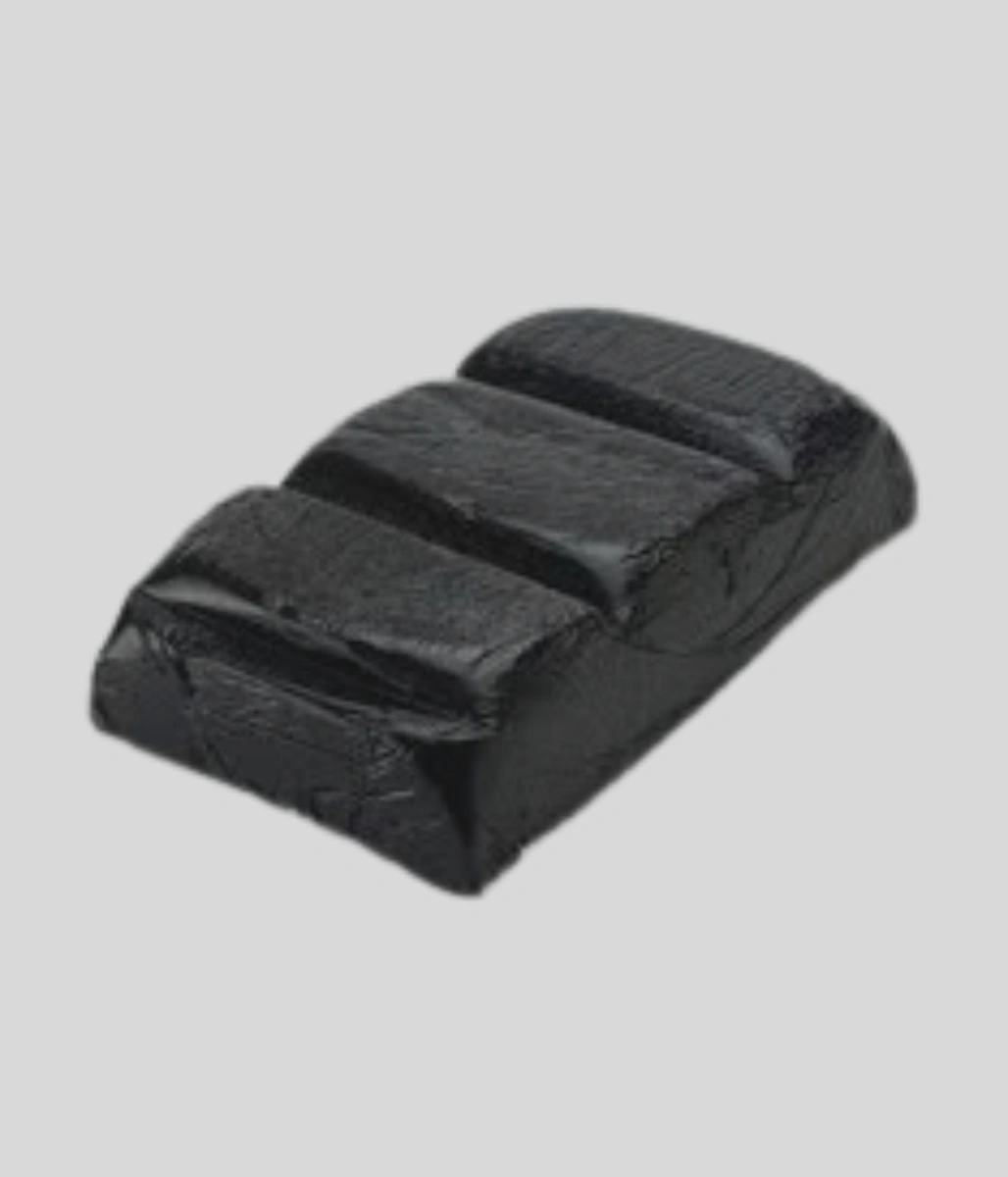

Bitumen 95/25 is a high-quality oxidized bitumen, known for its excellent hardness, thermal stability, and superior waterproofing properties. With a softening point of approximately 95°C and a penetration value of 25 dmm (tenths of a millimeter), it offers exceptional resistance to deformation, even under high temperatures and heavy loads. This grade of bitumen is specifically formulated for industrial applications where durability and reliability are critical. Its versatility also allows it to be used in a variety of other sectors, including the automotive and construction industries, for sealing and bonding purposes.

Common uses of Bitumen 95/25 include manufacturing roofing felts, waterproofing membranes, pipe coatings, and protective coatings for various structures. Its ability to withstand chemical exposure and resist water infiltration makes it ideal for applications in harsh environments. Additionally, its high softening point ensures excellent performance in regions with extreme temperature fluctuations. Bitumen 95/25’s resistance to aging and oxidation further enhances its long-term stability and performance. Produced through advanced oxidation processes, Bitumen 95/25 meets international quality standards, making it a trusted material for industrial and construction projects that demand long-lasting and efficient solutions. Its combination of strength, flexibility, and resistance to environmental stressors makes it a versatile and indispensable product in many industries.

Category:

Analyze

Bitumen 85/100
Characteristics Unit Specification Test Method
Penetration @ 25 °C 0.1 mm 60-70 ASTM D-5
Specific gravity @ 25 °C gr/cm3 1.01-1.060 ASTM D-70
Softening Point °C 46-56 ASTM D-36
Ductility @ 25 °C Cm 100 Min ASTM D-113
Loss on heating % wt 0.2 Max ASTM D-6
Drop in penetration after heating % 20 Max ASTM D-6 & D-5
Flash Point °C 250 Min ASTM D-92
Solubility in CS2 % wt 99.0 Min ASTM D-4
Organic matter insoluble in CS2 % wt 0.2 Max ASTM D-4
Viscosity @ 60 °C p 2000±400 ASTM D-2171
Spot test – Negative *A.A.S.H.O.T.102
Different bitumen penetration Grades
Characteristics Unit 30/40 50/70 100/120 160/220 200/300 Test Method
Specific gravity @ 25 °C gr/cm3 1.01-1.06 1.01-1.06 1.01-1.04 1.01-1.06 1.01±0.05 ASTM D-70
Penetration @ 25 °C 0.1 mm 30-40 50-70 100-120 160-220 200-300 ASTM D-5
Softening Point (R &B) °C 55-63 46-54 42-49 35-43 34-41 ASTM D-36
Softening Point (R &B) °C 55-63 46-54 42-49 35-43 34-41 ASTM D-36
Ductility @ 25 °C Cm 100 100 100 100 100 ASTM D-113
Loss on heating, Max % wt 0.2 0.2 0.2 0.2 1.3 ASTM D-6
Drop in Penetration after heating, Max % 20 20 20 20 - ASTM D-6 & D-5
Flash Point. Min °C 250 230 250 220 177 ASTM D-92
Solubility in CS2 % wt 99.5 99 99.5 99 99 ASTM D-4
Spot test - Negative Negative Negative Negative Negative *A.A.S.H.O.T.102
Oxidized Bitumen
aracteristics Unit 85/25 95/25 90/15 9115/15 Test Method
Penetration @ 25°C, 100 gm, 5 Seconds 0.1 mm 20/30 25/30 10/20 10/20 ASTM D-5
Specific gravity @25°C gr/cm³ 1.01/1.05 1.01/1.05 1.01/1.05 1.01/1.05 ASTM D-70
Softening Point (R&B) °C 80/90 90/100 85/95 110/120 ASTM D-36
Loss on heating, Max % wt 0.2 0.2 0.2 Max 0.2 0.2
Flash Point (Cleveland Open Cup), Min °C 260 260 225 260 ASTM D 92
Performance Grades Bitumen (PG)
High Temperature Performance Low Temperature Performance
PG 46 -46, -40, -34
PG 52 -46, -40, -34, -28, -22, -16, -10
PG 58 -40, -34, -28, -22, -16, -10
PG 64 -40, -34, -28, -22, -16, -10
PG 70 -40, -34, -28, -22, -16, -10
PG 76 -34, -28, -22, -16, -10
PG 82 -34, -28, -22, -16, -10
Viscosity Grades Bitumen (VG)
Characteristics Unit VG 40 VG 30 VG 20
Absolute Viscosity @ 60°C, Poises °C Min. 2200 Min. 2400 Min. 1600
Kinematic Viscosity @ 135°C cSt Min. 400 Min. 350 Min. 300
Softening Point (R&B) °C Min. 50 Min. 47 Min. 45
Flash Point (Cleveland Open Cup) °C Min. 220 Min. 220 Min. 220
Solubility in trichloroethylene % Min. 99 Min. 99 Min. 99
Penetration @ 25°C (100 grams, 5 seconds) 0.1 mm 40-60 50-70 60-80
Test on residue from thin film oven tests/RTFOT
(i) Viscosity ratio @ 60°C °C Max. 4.0 Max. 4.0 Max. 4.0
(ii) Ductility @ 25°C (Thin film oven test) Cm Min. 25 Min. 40 Min. 50
Specification Gravity @ 27/27 °C Min. 0.99 Min. 0.99 Min. 0.99
Conforms to BIS (IS 73:2006) Specifications
Dhaduk Petrochemicals Cutback Bitumen Grades Slow Curing (SC)
Characteristics Unit SC70 SC250 SC800
Min Max Min Max
Kinematic Viscosity @ 60°C CST 70 140 250
Flash Point °C 66 - 79
Penetration @ 25°C, 100 gm, 5 Second CM 40 - 60
Distillate, volume percent of total distillate to 360°C °C 10 30 4
Ductility @ 25°C, Min CM 100 - 100
Solubility in Trichloroethylene, Min % 99 - 99
Water, Max %VOL - 0.5 -
Cutback Bitumen Grades Medium Curing (MC)
Characteristics Unit Test Method
MC30 MC70 MC250 MC800 MC3000
Min Max Min Max Min Max Min Max Min Max
Kinematic Viscosity @ 60°C CST 30 60 70 140 250 500 800 1600 3000 6000 ASTM D-2170
Flash Point, Min °C 38 - 38 - 66 - 66 - 66 - ASTM D-92
Penetration @ 25°C, 100 gm, 5 Second CM 120 250 120 250 120 250 120 250 120 250 ASTM D-5
Distillate Test: Distillate, volume percent of total distillate to 360 °C ASTM D-402
To 225 °C °C - 35 - 25 - 20 - - - -
To 260 °C °C 30 75 10 70 5 55 - 40 - 15
To 316 °C °C 75 95 65 93 60 90 45 85 15 75
Residue from distillation to 360 °C, Min %VOL 50 - 55 - 67 - 75 - 80 - STM D-402
Ductility @ 25°C, Min CM 100 - 100 - 100 - 100 - 100 - ASTM D-113
Solubility in Trichloroethylene, Min % 99.0 - 99.0 - 99.0 - 99.0 - 99.0 - ASTM D-4
Water, Max %VOL - 0.2 - 0.2 - 0.2 - 0.2 - 0.2 ASTM D-95
Cut back Bitumen Grades Rapid Curing (RC)
Cut back Bitumen Grades Rapid Curing (RC)
Characteristics Unit Specification Test Method
RC 30 RC 70 RC 250 RC 800 RC 3000
Min Max Min Max Min Max Min Max Min Max
Kinematic Viscosity @ 60°C CST 30 60 70 140 250 300 800 1600 3000 6000 ASTM D-2170
Flash Point °C - - - - 27 - 27 - 27 - ASTM D-92
Penetration @ 25°C, 100 gm, 5 Second CM 80 120 80 120 80 120 80 120 80 120 ASTM D-5
Residue from distillation to 360 °C, Min ASTM D-402
To 225 °C °C 55 - 50 - 35 - 15 - - -
To 260 °C °C 75 - 70 - 60 - 45 - 25 -
To 316 °C °C 90 - 85 - 80 - 75 - 70 -
Residue from distillation to 360 °C, Min %VOL 50 - 55 - 65 - 75 - 80 - ASTM D-402
Ductility @ 25°C, Min CM 100 - 100 - 100 - 100 - 100 - ASTM D-113
Solubility in Trichloroethylene, Min % 99 - 99 - 99 - 99 - 99 - ASTM D-2042
Water, Max %VOL - 0.2 - 0.2 - 0.2 - 0.2 - 0.2 ASTM D-95
Cut back Bitumen Grades Rapid Curing (RC)
Characteristics Unit Specification Test Method
RC 30 RC 70 RC 250 RC 800 RC 3000
Cut back Bitumen Grades Rapid Curing (RC)
Dhaduk Petrochemicals Bitumen Emulsion Specification of Cationic Bitumen Emulsions
Quick Setting Rapid Setting Medium Setting Slow Setting
CQS 1h CRS 1 CRS 2 CMS 2 CMS 2h CSS 1 CSS 1h
Min Max Min Max Min Max Min Max Min Max Min Max Min Max
Viscosity, Say bolt Furol @ 25°C SFs 20 100 - - - - - - - - 20 100 20 100
Viscosity, Say bolt Furol @ 25°C SFs - - 20 100 100 400 50 450 50 450 - - - -
Storage Stability test, 24-h, % A - 1 - 1 - 1 - 1 - 1 - 1 - 1
Demulsibility, 35 mL, 0.8 % Dioctyl sodium - - 40 - 40 - - - - - - - - -
Particle charge test Positive Positive Positive Positive
Sieve test, % A - 0.1 - 0.1 - 0.1 - 0.1 - 0.1 - 0.1 - 0.1
Cement Mixing test, % - N/A - - - - - - - - 2 - - 2
Coating ability and water resistance:
Coating, dry aggregate - - - - - - good - good - - - - -
Coating, after spraying - - - - - - fair - fair - - - - -
Coating, wet aggregate - - - - - - fair - fair - - - - -
Coating, after spraying - - - - - - fair - fair - - - - -
Oil Distillate, by volume of emulsion, % - - - 3 - 3 - 12 - 12 - - - -
Residue % 57 - 60 - 65 - 65 - 65 - 57 - 57 -
Tests on residue from distillation test:
Penetration @ 25°C, 100 grams, 5 Second 40 30 100 250 100 250 100 250 40 90 100 250 40 90
Ductility, 25°C 5 Cm/Min, Cm 40 - 40 - 40 - 40 - 40 - 40 - 40 -
Solubility in trichloroethylene, % 97.5 - 97.5 - 97.5 - 97.5 - 97.5 - 97.5 - 97.5 -
Cut back Bitumen Grades Rapid Curing (RC)
